NanoWorld
Product Description
Pyrex-Nitride Probe – TRiangular Single Cantilever
Leading edge in sharpness and durability
NanoWorld Pyrex-Nitride PNP-TRS probes are designed for various imaging applications in contact or dynamic mode and can also be used for ScanAsyst?** mode in air.
The Pyrex-Nitride TRS probes have a single silicon nitride cantilever with a very low force constant and an integrated oxide sharpened, pyramidal tip with a height of 3.5 μm. The tip is located 4 μm behind the free end of the cantilever. The probe series features a support chip that is made of Pyrex.
All chips are pre-separated prior to shipment and come in Gel-Pak containers.
Additionally, this probe offers an excellent radius of curvature.
** ScanAsyst? and Peak Force Tapping? are registered trademarks of Bruker Corporation.
Coating Description
Gold Reflex Coating
The gold reflex coating consists of a 70 nm thick gold layer deposited on the detector side of the cantilevers which enhances the reflectance of the laser beam. Furthermore it prevents light from interfering within the cantilever.
As the coating is almost stress-free the bending of the cantilever due to stress is less than 2 degrees.

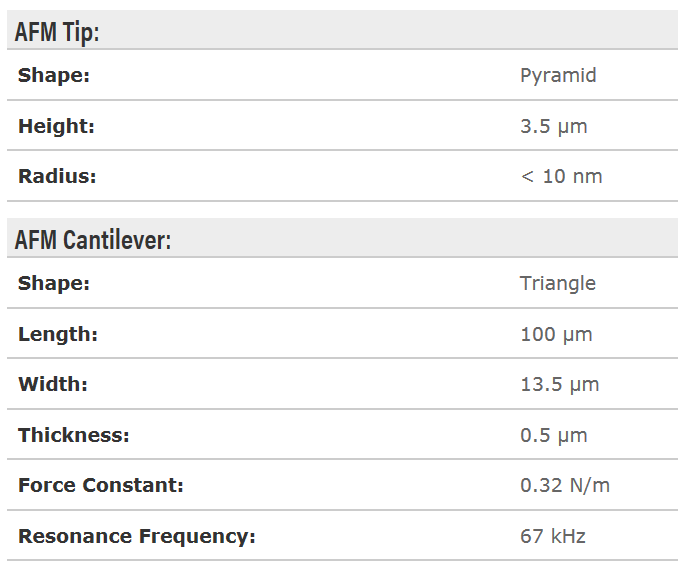

Full Technical Data
