NanoWorld
Product Description
NanoWorld Pointprobe? FM probes are designed for force modulation mode imaging. The force constant of the FM type fills the gap between contact and non-contact probes. Furthermore non-contact or tapping? mode imaging is possible with this AFM probe.
All probes of the Pointprobe? series are made from monolithic silicon which is highly doped to dissipate static charge. They are chemically inert and offer a high mechanical Q-factor for high sensitivity. The tip is shaped like a polygon based pyramid.
For applications that require hard contact between tip and sample this probe offers a real diamond tip-side coating. This coating features extremely high wear resistance due to the unsurpassed hardness of diamond.
The typical macroscopic tip radius of curvature lies in the range between 100 and 200 nm. Nanoroughnesses in the 10 nm regime improve the resolution on flat surfaces.
Coating Description
Diamond Coating / Aluminum Reflex Coating
The diamond coating consists of a 100 nm thick polycrystalline diamond layer deposited on the tip side of the cantilever resulting in an unsurpassed hardness of the tip.
The aluminum reflex coating deposited on the detector side of the cantilever enhances the reflectance of the laser beam and prevents light from interfering within the cantilever.

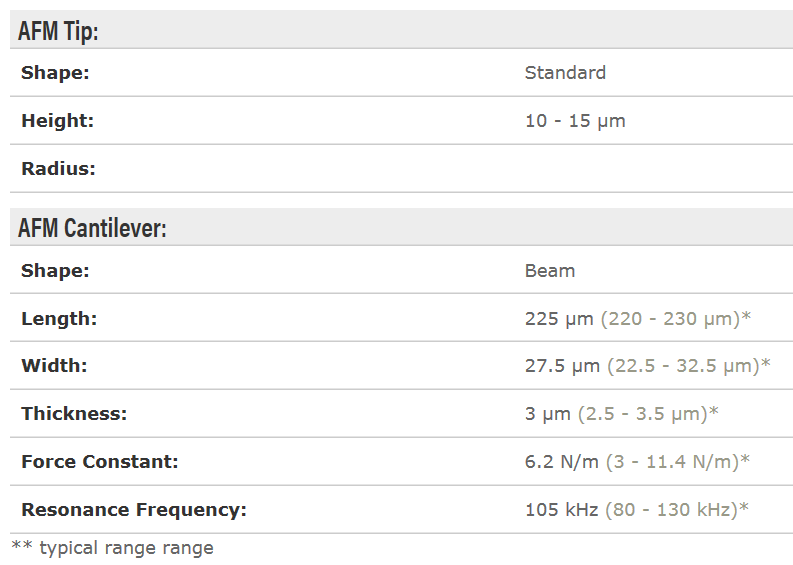

Full Technical Data
